yaaqii Digital Horizontal Inclinometer compatible-Bluetooth Dual Axis LCD Protractor

<p><strong>Features:</strong></p><p>1: Accurately measure angles with dual-axis function and Type-C rechargeable port, convenient to use anytime, anywhere.</p><p>2: Equipped with a strong magnet, this digital protractor can be firmly fixed on the tool for stable measurement.</p><p>3: for&nbsp;Ensure accuracy with data retention and save battery life with automatic shutdown after 3 minutes.</p><p>4: Large LCD display and backlight for clear display, easy to read measurement values even in low-light environment.</p><p>5: This digital angle meter adopts plastic structure for easy one-handed operation, portable and for&nbsp;durable.</p><p><br></p><p><strong>Specifications:</strong></p><p>Part name: Digital inclinometer</p><p>Material: ABS</p><p>Color: Black</p><p>size：As shown</p><p>Range: Single axis 4*90 degrees/Dual axis 40 degrees</p><p>Resolution: 0.1 degrees</p><p>Accuracy: Single axis 0.2 degrees/Dual axis 0.3 degrees</p><p>Repeatability: 0.1 degrees</p><p>Power supply: 3.7V lithium battery</p><p>Magnet: There are magnets only on the top and button for&nbsp;surface</p><p>Wireless data transmission function:Pairing: When the inclinometer and the receiving device with compatible-Bluetooth device (computer, mobile phone, .) are used together for the first time, the two need to be paired. The specific operation wayis: turn on the compatible-Bluetooth search function of the receiving device (computer, mobile phone, .), and press and hold the wireless transmission button on the inclinometer until the " " on the LCD screen of the inclinometer starts flashing, indicating that the calibrator enters the search mode, release the wireless transmission button, wait until the receiving device searches for the device named K-XXXXXXxXxx, and then click Connect. After the connection is successful, " " lights up on the LCD screen of the pan/tilt control box.</p><p>Data transmission (such as mobile phone and computer): After the connection is successful, open the office software and keep the interface active. Short press the wireless transmission button, and the SMS box can send data to the receiving device (computer, mobile phone). The data format is shown in the figure below.</p><p>Main screen:</p><p>1. For single-axis measurement, the main screen only displays X-axis data.</p><p>2. For dual-axis measurement, the main screen displays both X-axis and Y-axis data.</p><p><br></p><p><strong>Package content:</strong></p><p>1*Digital display inclinometer</p><p><br></p><p></p><p><strong>Note:</strong></p><p>1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.<br>2. Please allow slight manual measurement deviation for the data.</p><p><br><br></p><p><br></p>

• 【ACCURATE ANGLE MEASUREMENT】 Measure angles with using the dual axis function and Type C rechargeable port, allowing you to work anytime, anywhere.

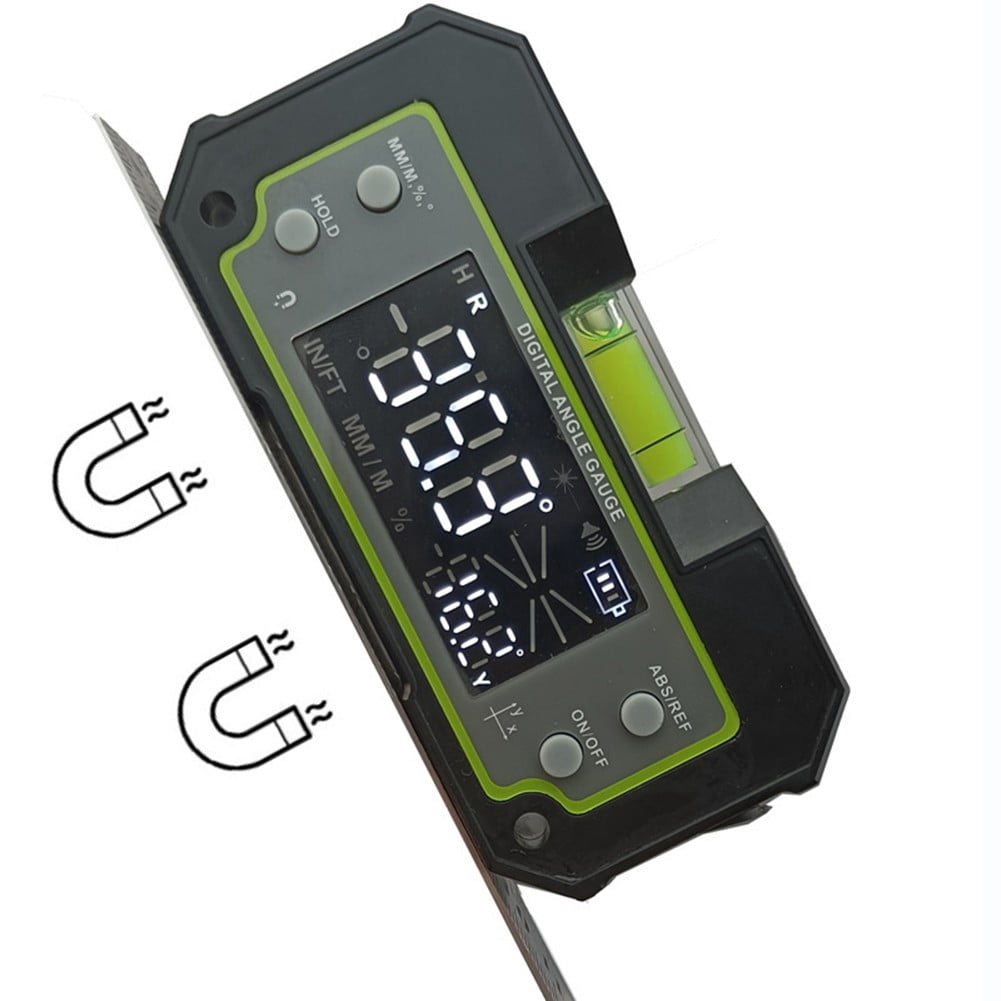

• 【MAGNETIC DESIGN】 The strong magnet securely attaches the digital protractor to tools for stable measurements, enhancing your workflow efficiency.
• 【DATA RETENTION & ENERGY SAVING】 accuracy with data retention features while conserving battery life with an automatic shutdown after 3 minutes of inactivity.
• 【USER-FRIENDLY DISPLAY】 The large LCD display with backlight allows for easy reading of measurement values, even in low-light conditions.
• 【 & PORTABLE CONSTRUCTION】 Crafted from plastic for one-handed operation, this inclinometer is both lightweight and easy to carry around.
