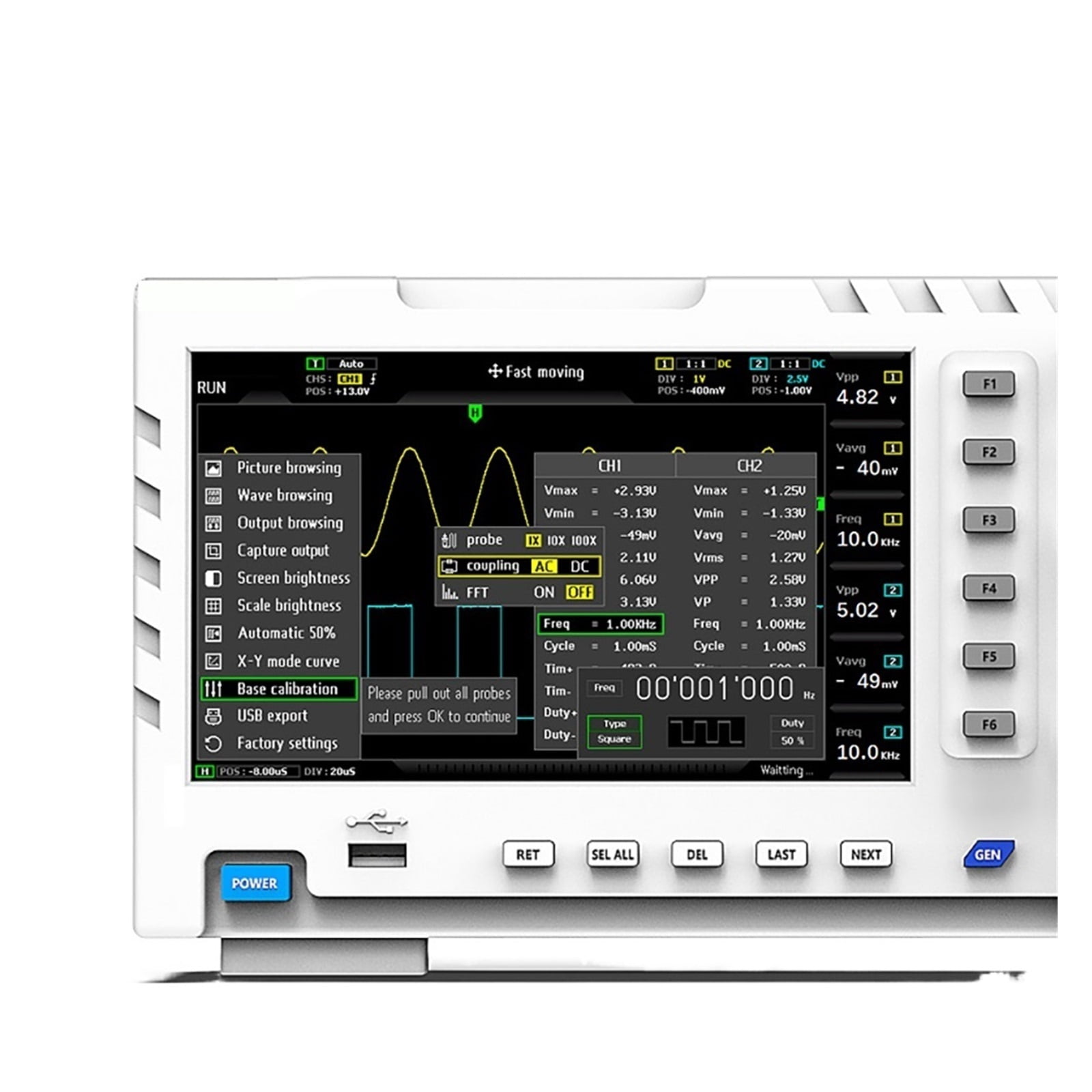

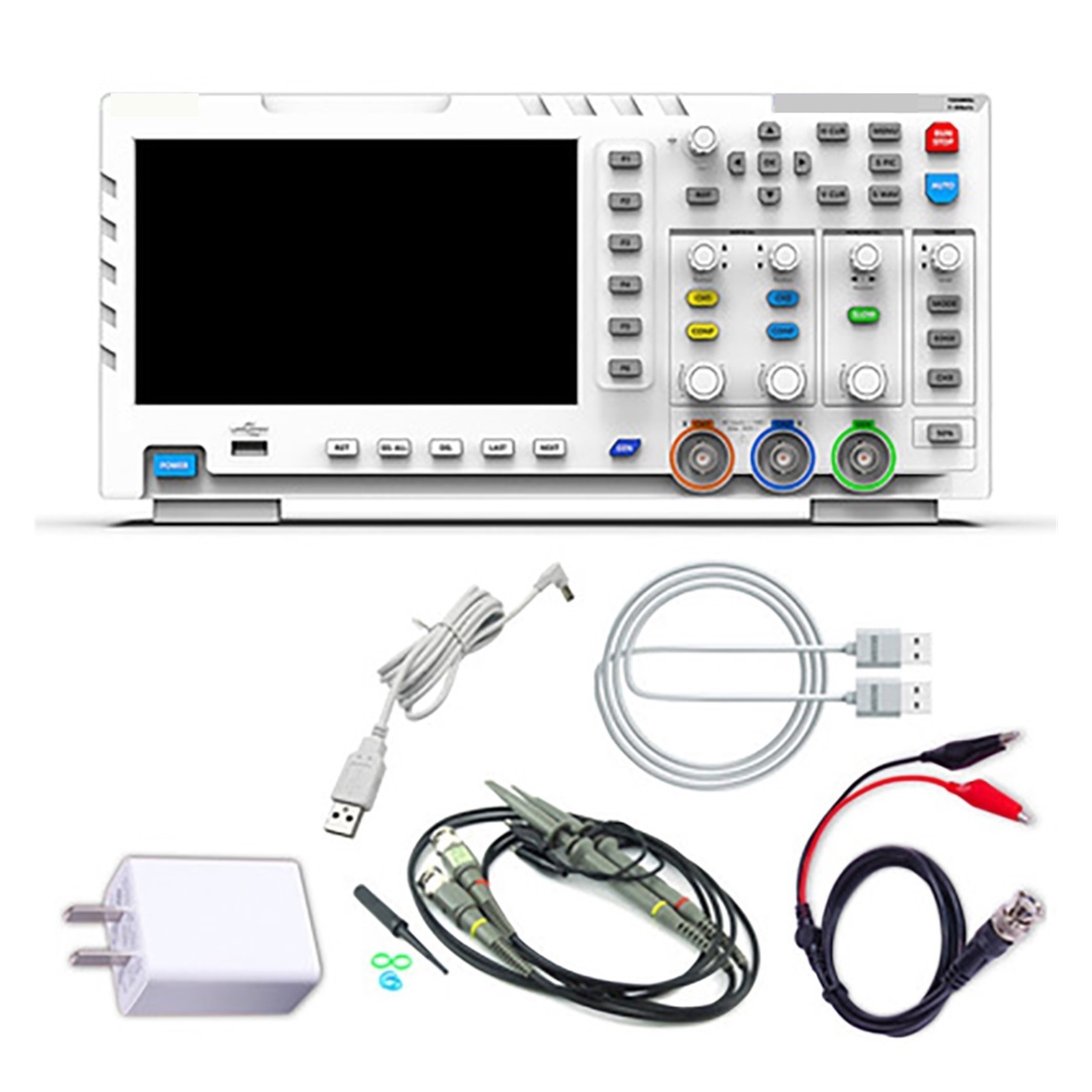

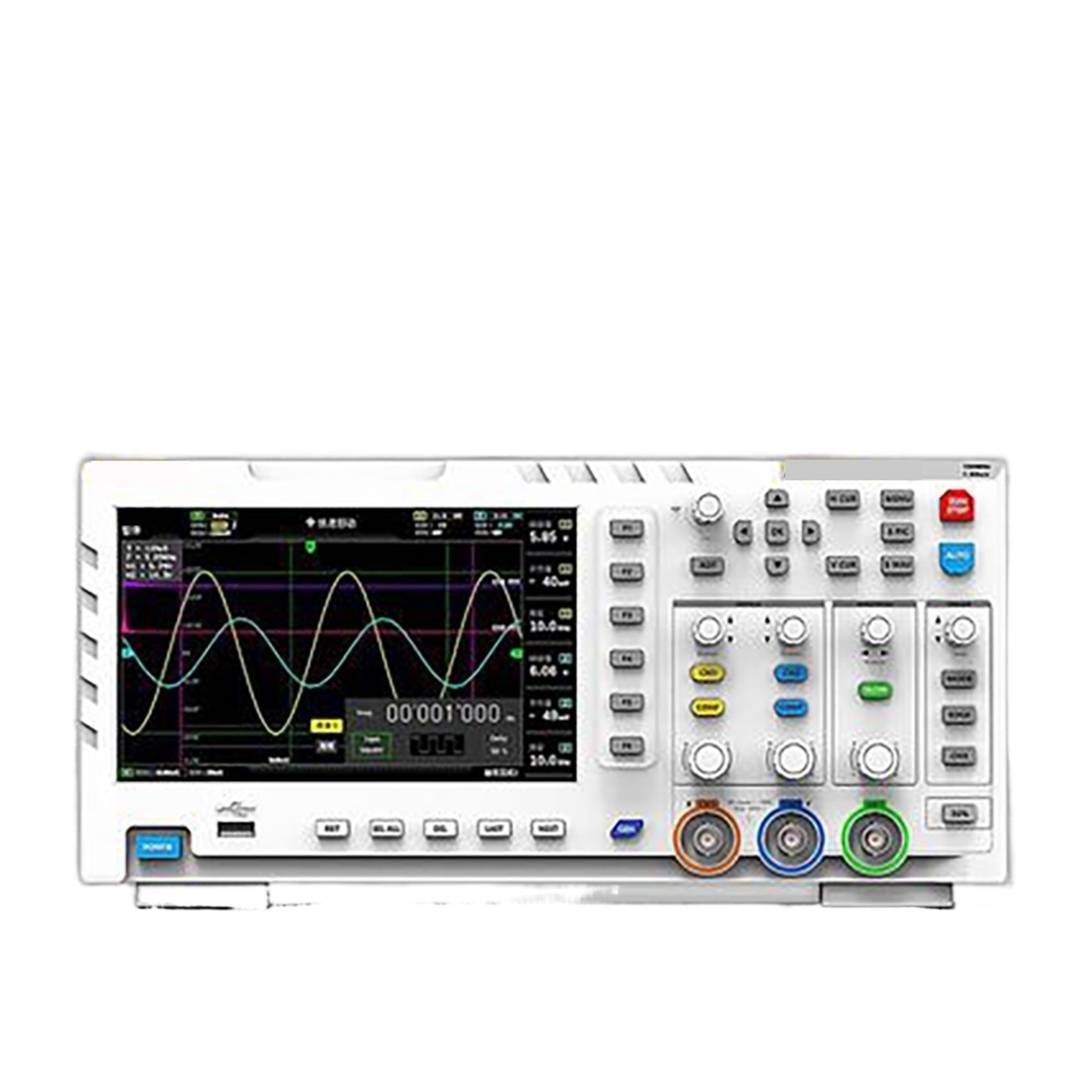

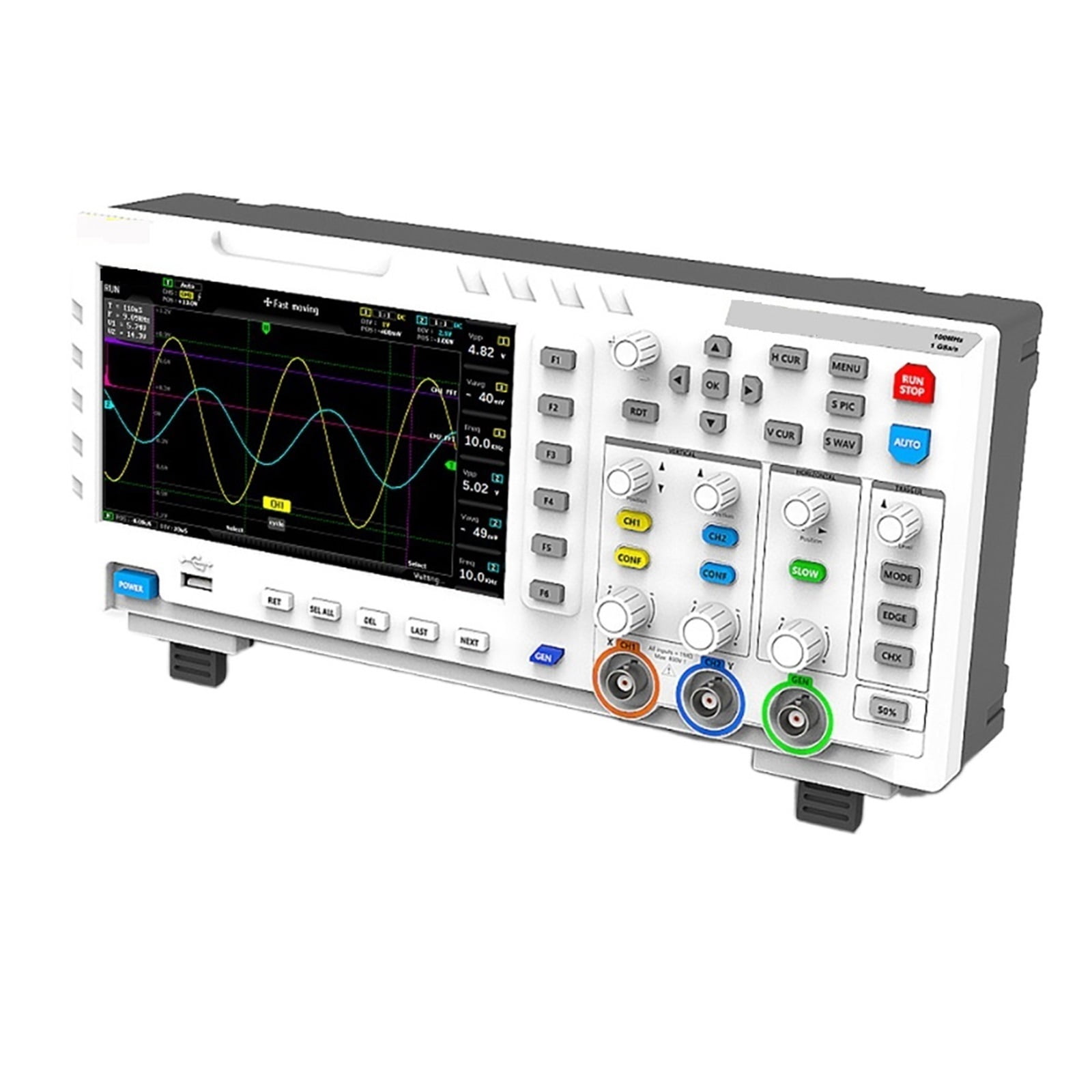

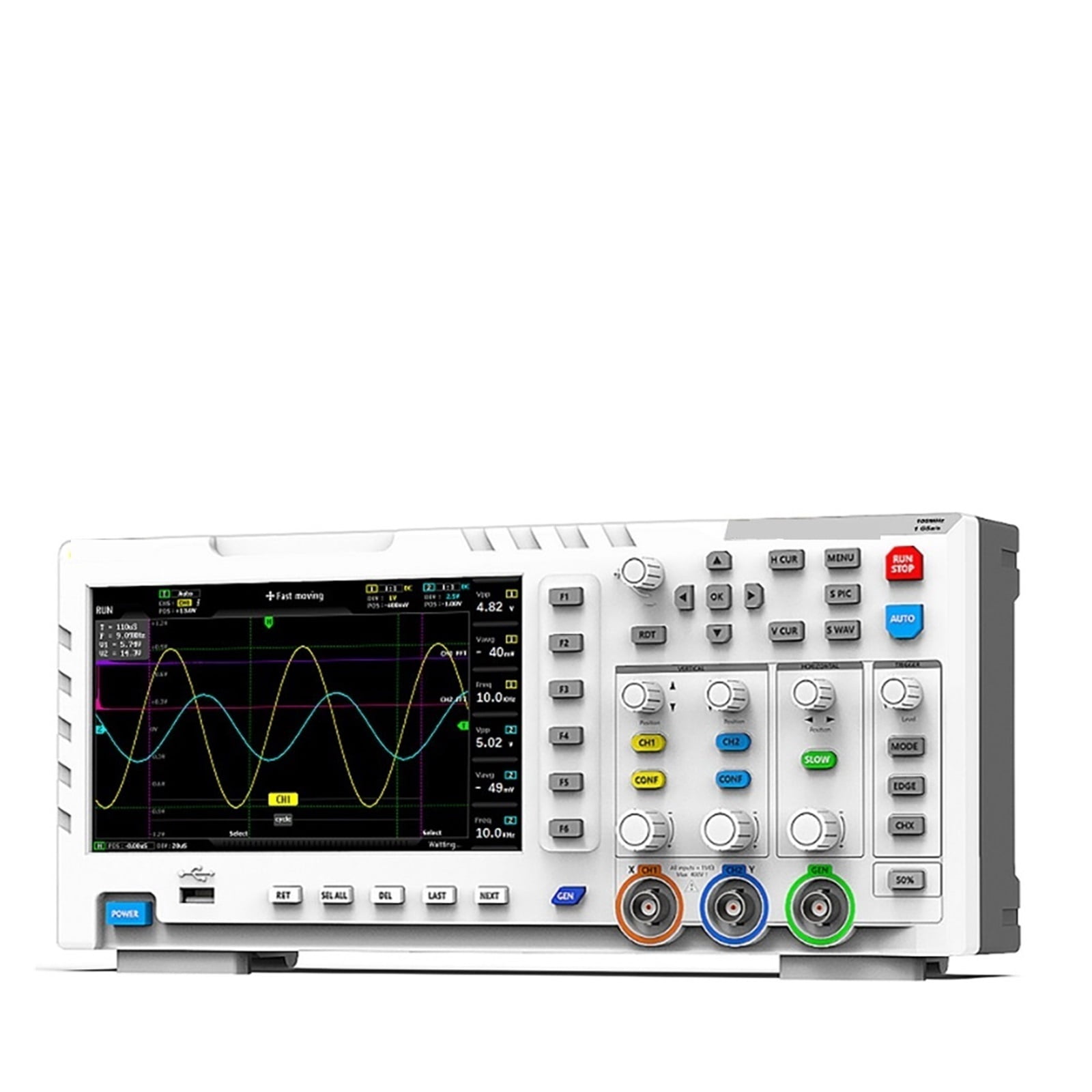

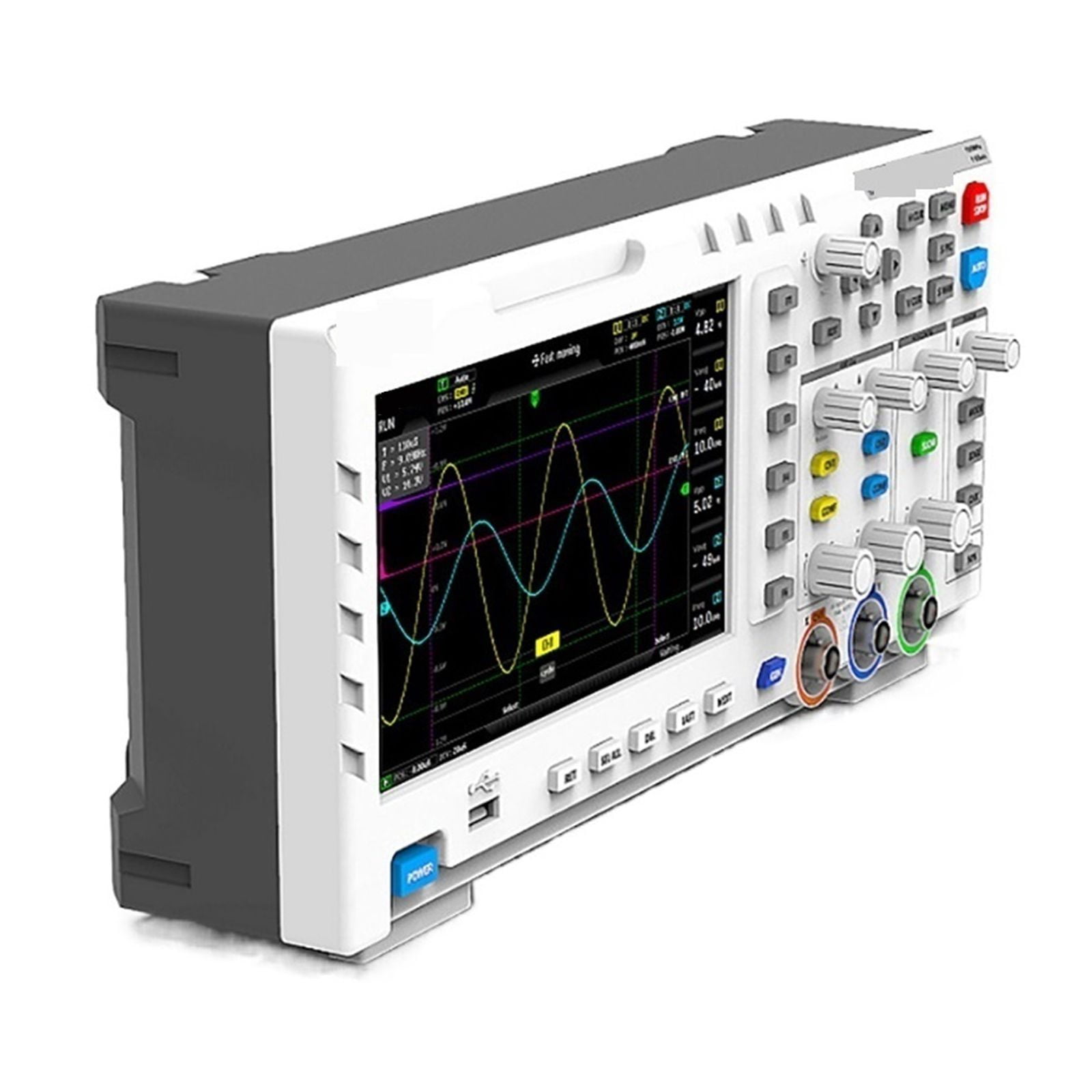

USB Digital Oscilloscope 1014D 2 In 1 Dual Channel Input Signal Generator 1GSa/s Sampling Rate 100MHz* 2 Ana-log Bandwidth ,Professional Designed

<p>Key Features:</p><p>1:Cursor measurement function, it is convenient to manually measure the period and frequency and voltage</p><p>2:Complete triggering function (single, normal, automatic)</p><p>3:At any time, the waveform display (pause function) is frozen</p><p>4:Equipped with One-button AUTO</p><p>5:One-button waveform storage and screenshot</p><p>6:Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data</p><p>7:Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.</p><p>8:Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis</p><p>9:Display function, can analyze the spectral characteristics of the signal</p><p>10:Memory compression technology, waveform refresh screen does not flicker</p><p>11:Screen brightness adjustment</p><p>12:Background grid brightness adjustment</p><p>13:Ultra thin, easy to carry</p><p></p><p>Specifications:</p><p>1:Analog band width: 100MHz * 2</p><p>2:Number of channels:2 channels</p><p>3:Maximum real time sampling rate: 1GSa/s</p><p>5:Horizontal time base range: 50S/div ~ 10nS/div</p><p>7:Storage depth: 240Kbit</p><p>8:Input resistance: 1M</p><p>9:ADC precision: 8bits</p><p>10:Coupling mode: AC/DC</p><p>11:Trigger mode: Single, Normal, Auto</p><p>12:Trigger edge: Rising edge/Falling edge</p><p>14:Display: 7 inch - 800*480</p><p>16:Extension ports:USB picture export</p><p></p><p>usb digital oscilloscope table, Oscilloscopes, Electronic Measuring Instruments, Measurement &amp; Analysis Instruments</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• 1:Built in signal generator, support 12 kinds of function signal
• 2:Output signal function,can store up to 1000 capture signals
• 3:Targeted high intelligent decoding algorithm, the encoder life is infinite
• 4:100MHz analog bandwidth @ 1GSa/s sampling rate(1X = 5MHz,10X = 100MHz)
• 5:Fully fit 7 inch 800 * 480 resolution color LCD display with bright colors and high contrast
