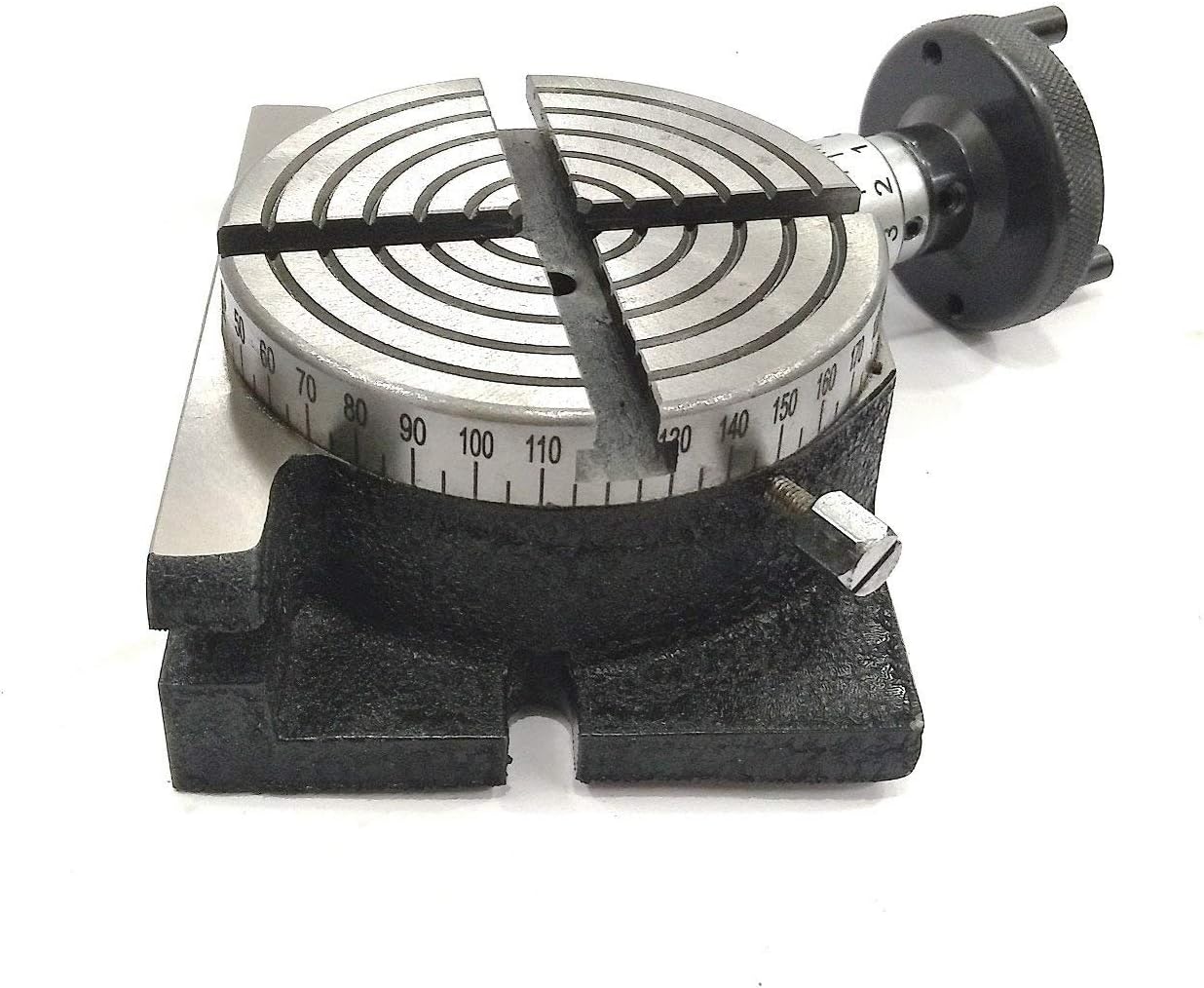

QUALITY 4"/ 100 MM ROTARY MILLING INDEXING TABLE WITH SUITABLE TAILSTOCK FOR MILLING MACHINE
Product details
| Management number | 230029889 | Release Date | 2026/05/31 | List Price | $56.00 | Model Number | 230029889 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description: 4 Inches (100 mm) Rotary Table Designed for smaller milling machines. Table diameter 100 mm Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Center Height in vertical position: 2-1/16" (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in Horizontal & vertical position. Supplied with a suitable Tailstock. Point is Hardened & Ground
- Brand New Precision Quality 4" /100 mm Regular Rotary Table designed for smaller milling machines
- Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees.
- Center Height in vertical position: 2-1/16" (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero.
- Can be mounted both in Horizontal & vertical position.
- Supplied with a suitable Tailstock. Point is Hardened & Ground
| ASIN | B07D5DV9WF |
|---|---|
| Color | Wrinkle Black Paint Finish & Ground Finish |
| Brand Name | ASSORTS |
| Item Weight | 30.86 Pounds |
| Manufacturer | ASSORTSMACHINETOOLS |
| Material Type | Cast Iron |
| Number of Pieces | 1 |
| Included Components | 4"/ 100 MM ROTARY TABLE WITH M6 CLAMP KIT & TAILSTOCK |
| Manufacturer Part Number | MRT-4R.4 |
