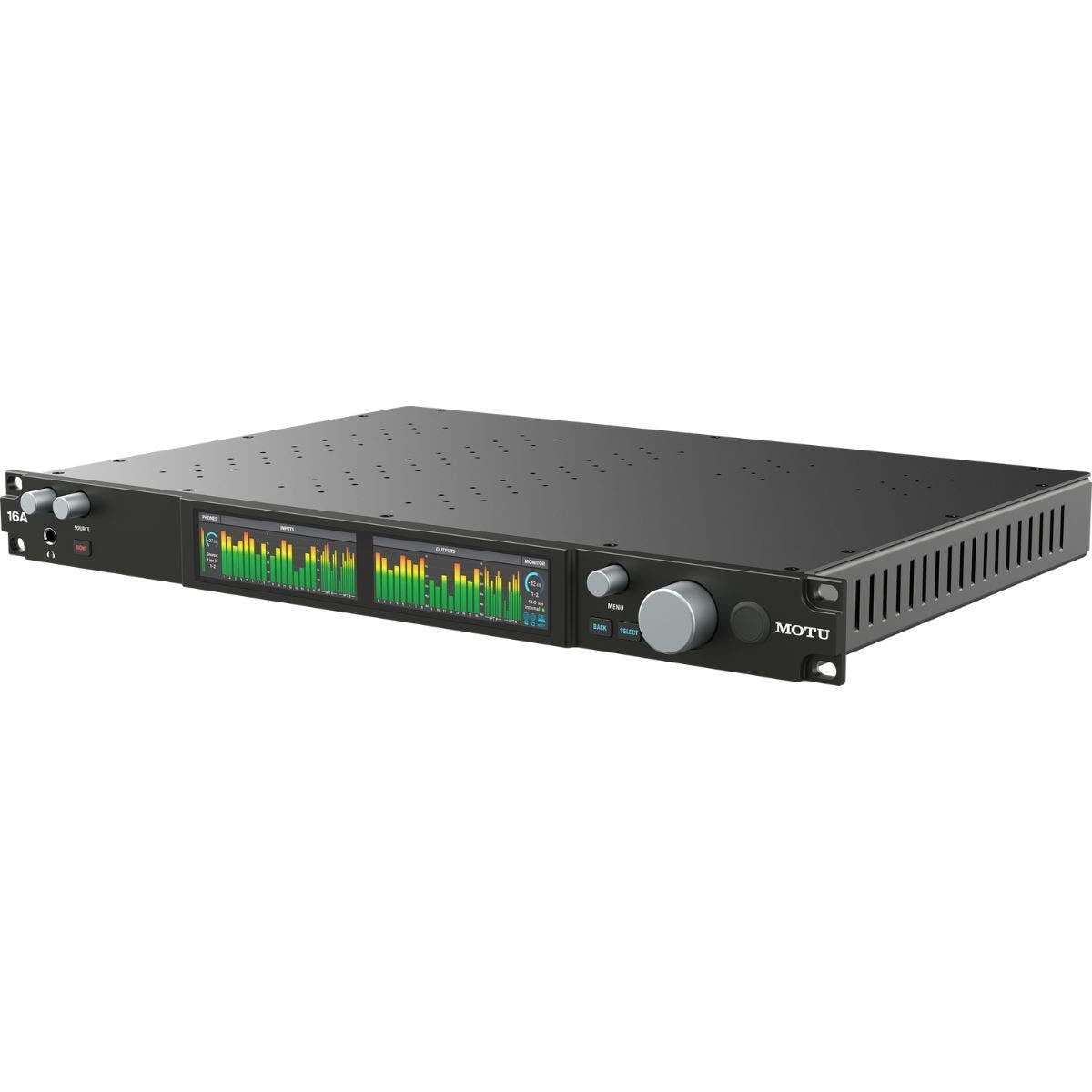

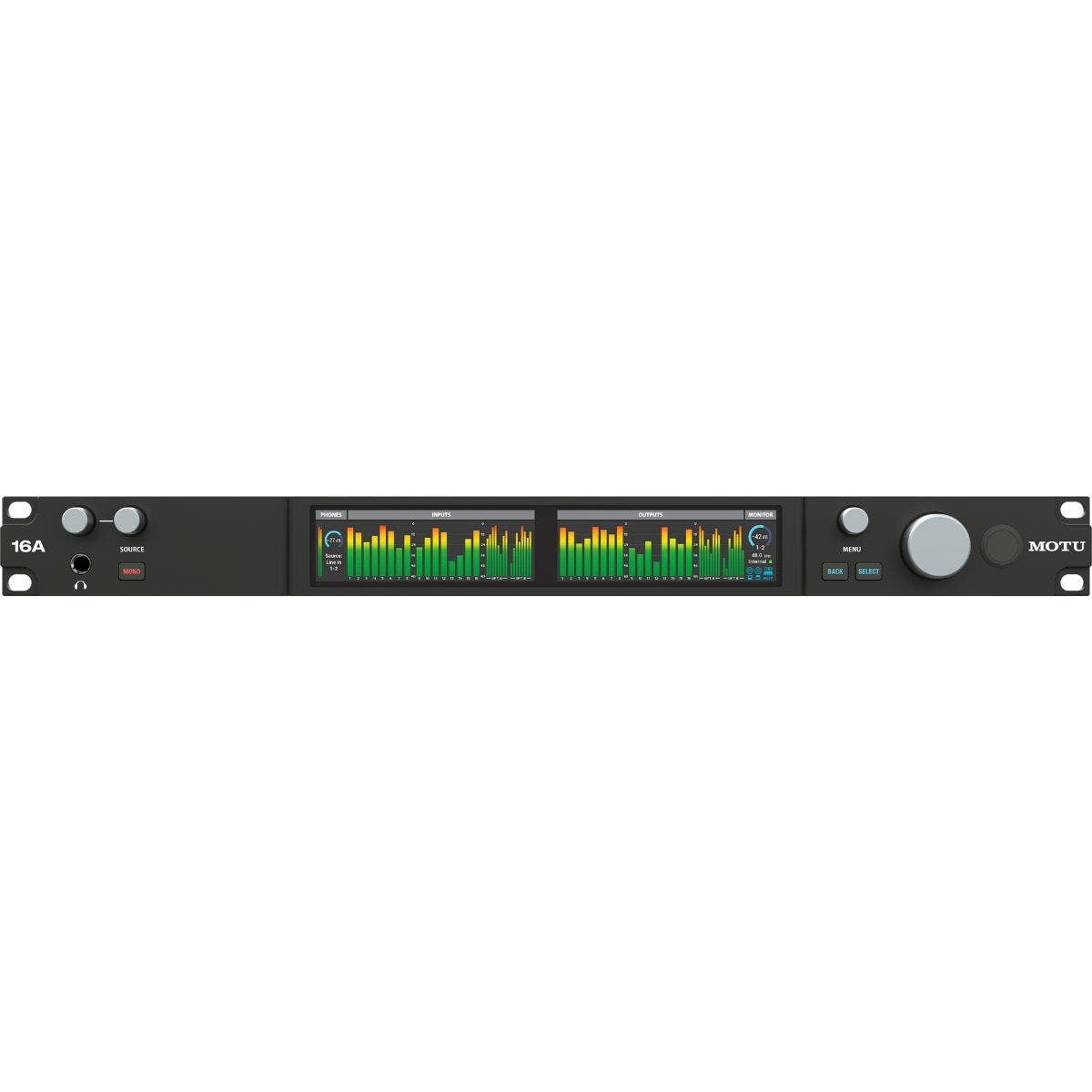

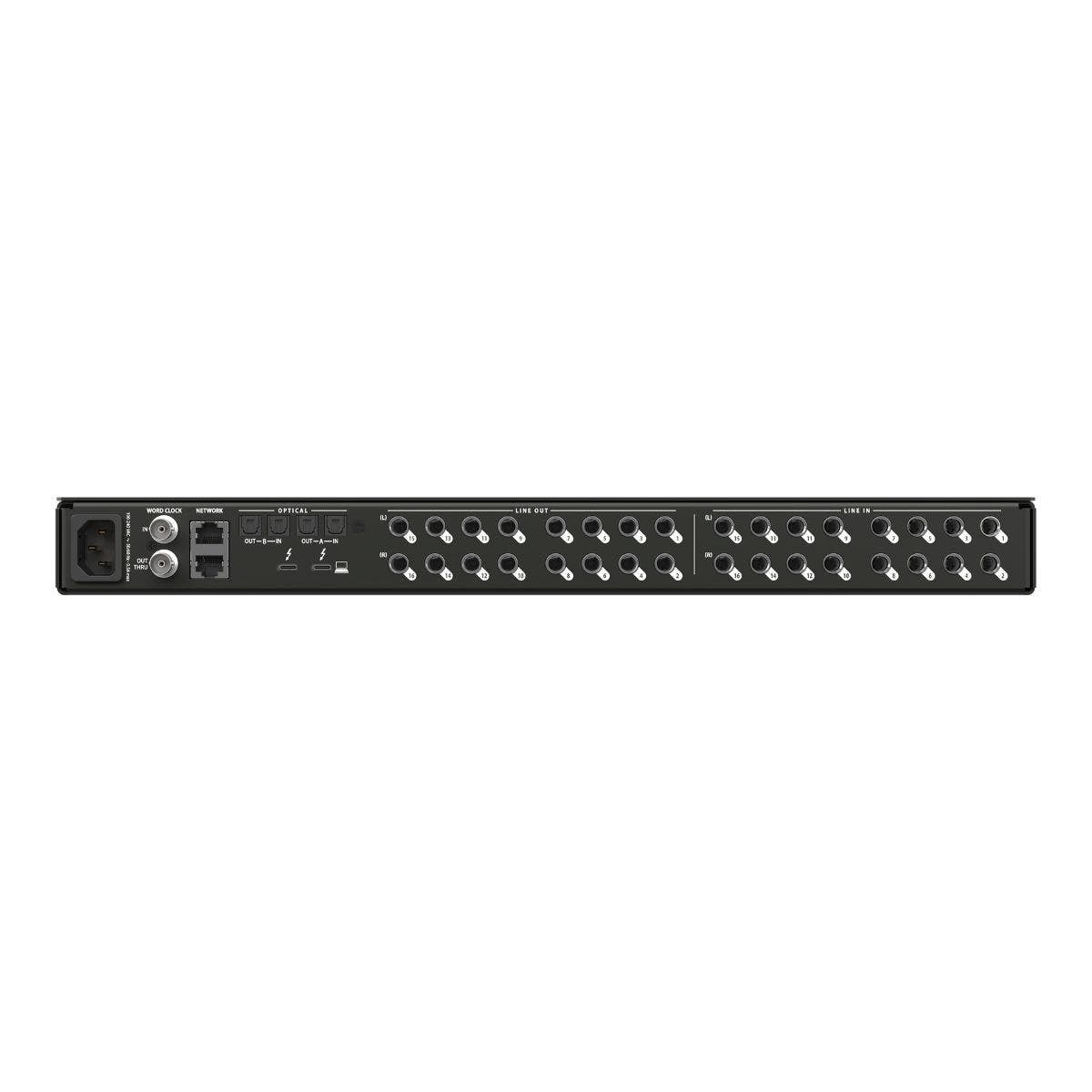

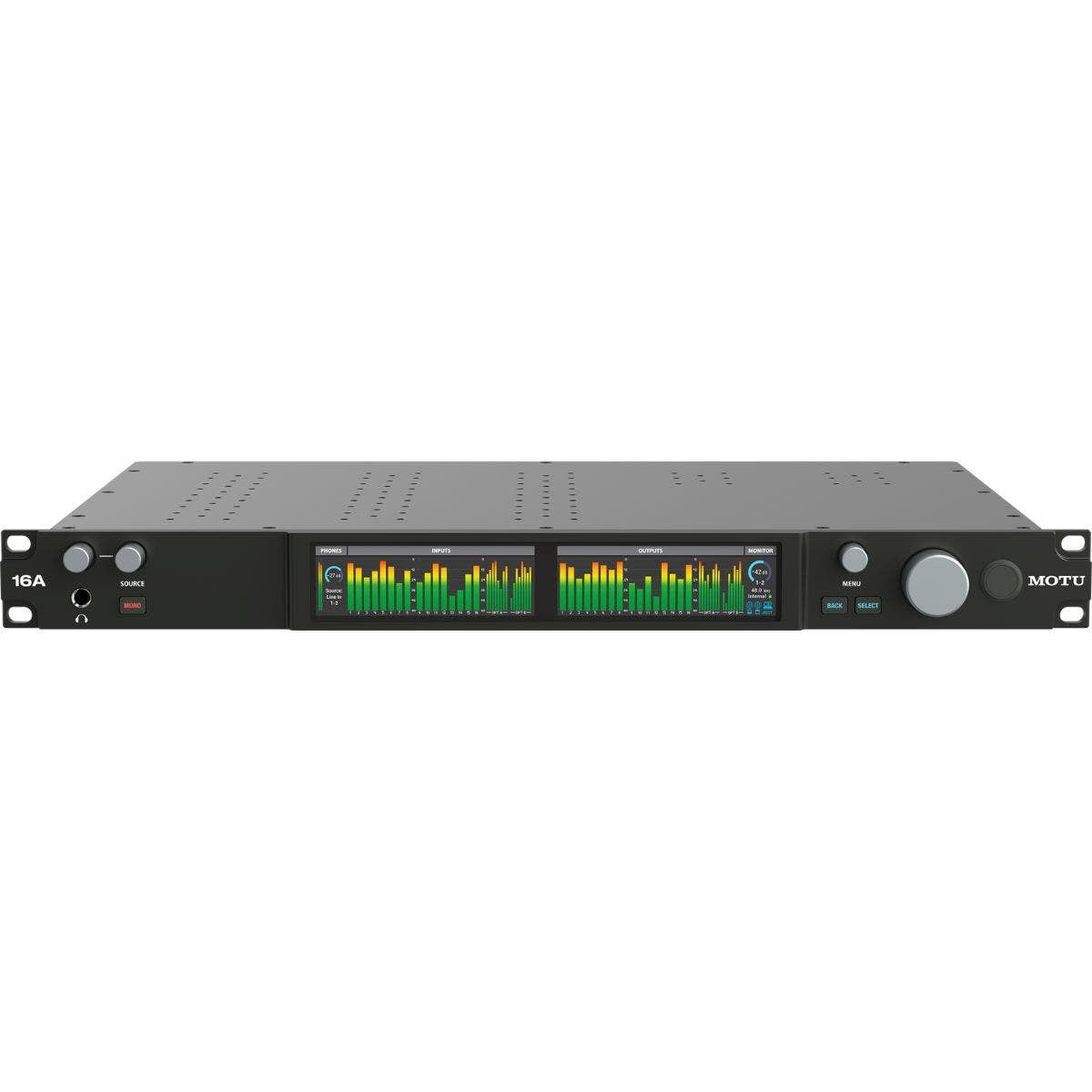

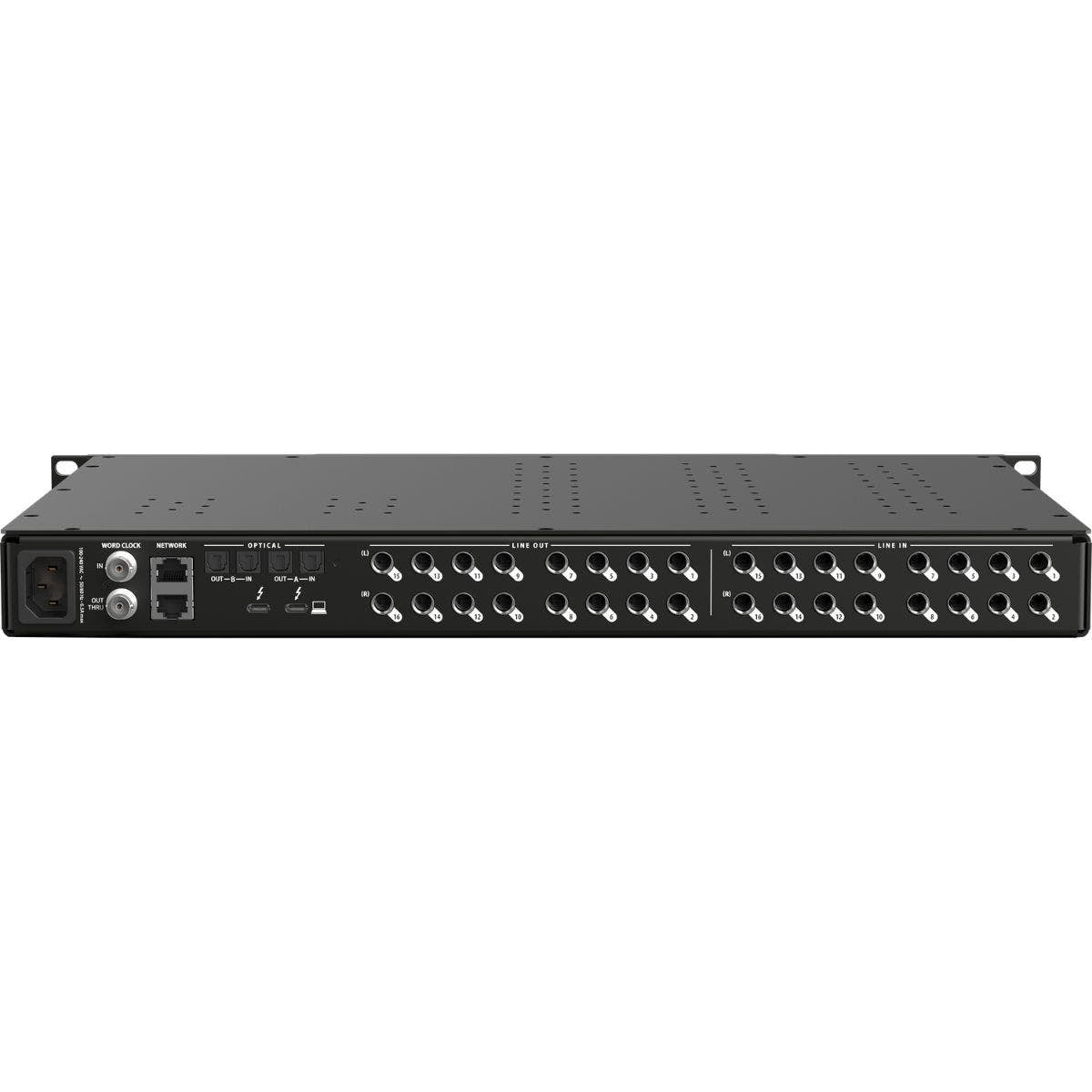

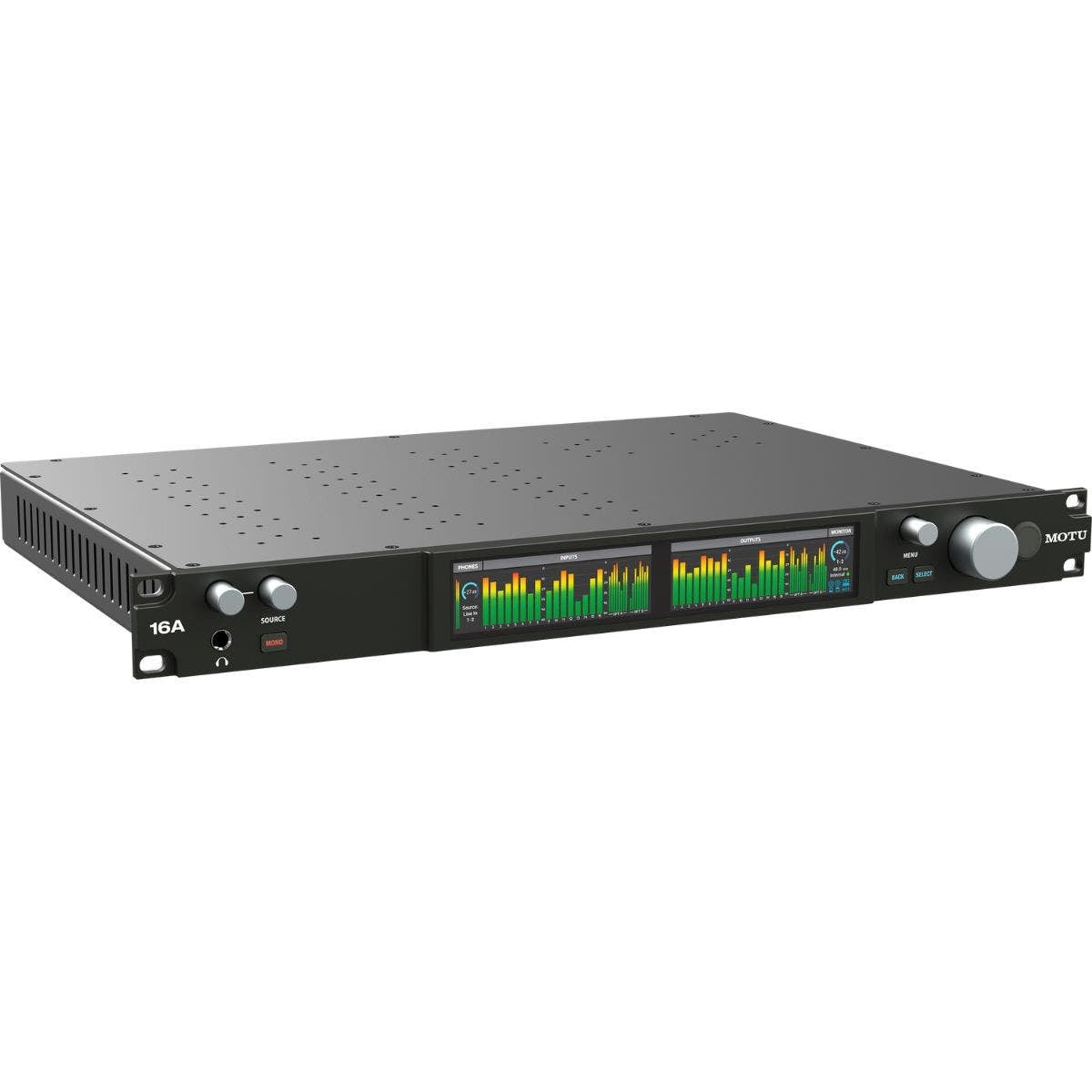

MOTU MOTU 16A Thunderbolt 4 / USB4 Audio Interface

Designed as the central hub of a high-performance recording or live-sound environment, the <b>MOTU 16A</b> is a 32-in / 34-out audio interface featuring Thunderbolt 4 and USB4 connectivity, onboard DSP mixing and effects, AVB networking, and advanced A/D/A conversion supporting up to 32-bit / 192 kHz resolution. The unit integrates a 64-channel DSP-driven monitor mixer with 32-bit floating-point internal processing, enabling low-latency routing and effects independent of host CPU load. A full digital patch bay provides flexible signal routing between physical I/O, the internal mixer, computer channels, and the AVB network.<br><br> The 16A supports 66 simultaneous audio channels locally and enables up to 256 channels of low-latency streaming over Thunderbolt to a host system. It also offers a full range of digital connectivity options including ADAT/SPDIF and Wordclock I/Os. The unit operates in multiple modes: as a standalone digital mixer, as an audio interface for macOS, Windows, or iOS devices, as an AVB network node, or any combination thereof. Comprehensive control of the mixer and system settings is provided via the CueMix Pro application. To jumpstart your workflow, Performer Lite production software is included, along with a comprehensive library of loops and sounds from industry leaders like Big Fish Audio, Lucidsamples, and Loopmasters.<br><br> Superb Analog-Audio Quality<br> The 16A features ESS Sabre32 DAC technology for pristine sound with 125 dB dynamic range and ultralow distortion—backed by decades of MOTU audio expertise.<br><br> 66 Simultaneous Audio Channels<br> Includes 16 balanced/unbalanced TRS analog I/O, dual 8-channel ADAT optical ports, and a dedicated stereo headphone out—totaling 32 inputs and 34 outputs. Use the 16A as expanded analog I/O, a flexible patchbay/mixer, or both.<br><br> Universal Connectivity<br> Connect via Thunderbolt 4 or USB4 with the included 40 Gbps USB-C cable. Enjoy plug-and-play compatibility with Mac, Windows, and iOS.<br><br> Supports Thunderbolt 3, USB3, and USB2—delivering up to 256 channels of I/O (128-in / 128-out) at 96 kHz.<br><br> Ultralow Latency Performance<br> Optimized drivers deliver round-trip latency as low as 1.8 ms at 96 kHz with a 32-sample buffer over Thunderbolt and USB, using high-performance DAWs like Digital Performer.<br><br> Plug-and-Play with Massive Bandwidth<br> Daisy-chain up to six Thunderbolt devices with 40 Gbps bandwidth—handling hundreds of audio channels, 8K video, and terabytes of data with ease. Thunderbolt 4–compatible cable included.<br><br> 64-Channel Mixer with 32-Bit Floating Point Precision<br> The internal mixer mirrors a large-format console with 64 inputs from any source: analog, digital, host software, network streams, or mixer buses.<br><br> Includes 26 aux buses, main, reverb, monitor, and solo buses—all with 4-band EQ and compression. Inputs also feature HPF and gating.<br><br> Intuitive Patchbay Routing and Splitting<br> Easily route any source to any destination via virtual patch cables. Split any source to multiple outputs, whether from interface I/O, host software, or AVB network devices.<br><br> Wireless Control with CueMix Pro<br> CueMix Pro gives complete control over mixing, routing, and settings wirelessly from macOS, Windows, or iOS.<br><br> Multiple devices can control the 16A simultaneously via Wi-Fi.<br><br> Balanced Analog I/O<br> TRS connections are fully balanced and engineered to reject RF interference, AC hum, and environmental noise.<br><br> DC-Coupled Outputs for CV Control<br> All analog outputs are DC-coupled, allowing CV sequencing of modular synths directly from your DAW.<br><br> Optical I/O and Expansion&lt

• Next-gen 32 x 34 Thunderbolt 4 USB audio interface delivers industry-leading connectivity and performance
  Renowned ESS Sabre32 DAC technology ensures 125 dB dynamic range for superb audio quality
  Ultralow latency drivers provide less than 2 ms round-trip latency for seamless workflow
  32 inputs and 34 outputs including 16 TRS analog line-level I/O for versatile setups
  Powerful 32-bit floating point DSP offers 64-channel mixing with effects for creative control
  Dual Gigabit network ports enable AVB networking for ultra-low latency audio streaming
  Wi-Fi control via CueMix Pro app simplifies mixing and settings adjustments remotely
  Two banks of optical I/O support ADAT S MUX formats for expanded digital connectivity
  Flexible headphone output allows customized mixes and live input monitoring with reverb
  Loopback functionality makes streaming and podcasting effortless with live input mixing options
