E-Bike Front Brake Rear Light Kit for 36V 48V Battery Contain Horn Headlight Switch and with Ebike Turn Functional Tail Light
Product details
| Management number | 214451766 | Release Date | 2026/04/12 | List Price | $31.11 | Model Number | 214451766 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

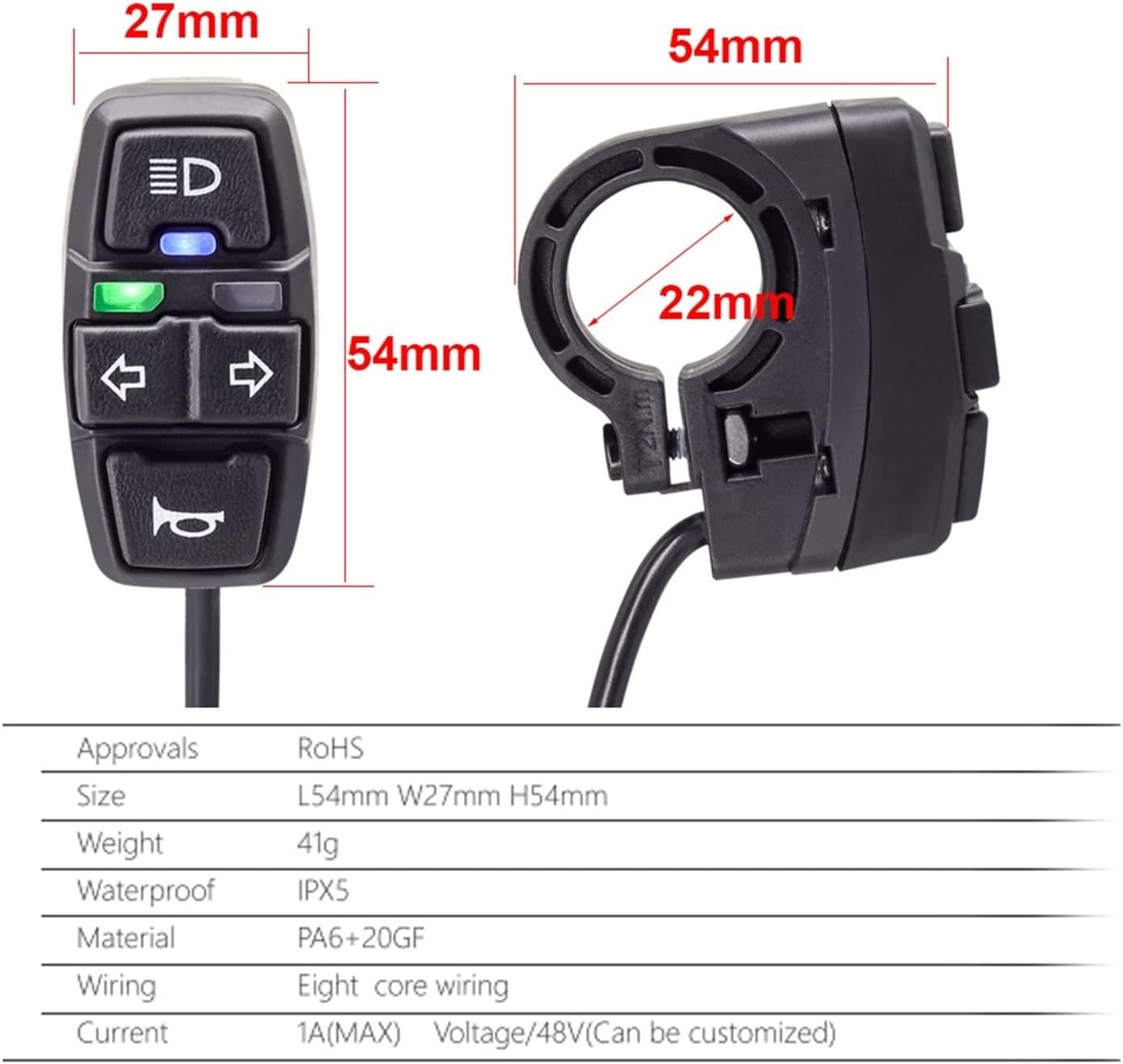

Ebike Brake Light And Turning Light Set Input 24V 36V 48V Electric Bike Scooter Headlight With Horn And Turn Tail LightWarning1: This product will not work in a Bafang or TSDZ mid motor.2: It needs to be in a 36V or 48V battery to work properly.3: This product needs to be connected to the same battery as the controller, otherwise the brake function cannot be activated.4: Connecting the brake requires the controller to be a low brake.Pplication: LED headlights for electric bicycles, shared electric vehicles, and motorcycleNet weight of the whole set: 400gPackage weight: about 0.65KG (small carton)Work status description:Driving lights: When the switch of driving lights is turned on, the headlights and tail lights are onHorn: When the horn button is pressed, the horn starts to work, release it to cancelBrake light: When the brake signal line and the controller brake low voltage signal are connected normally, the brake light will light up while braking, and the brake light will go out when the brake is cancelledTurn signal: When the turn switch of the designated direction is toggled, the turn signal of the corresponding direction starts to work and flashes, the flashing frequency is about 800ms each timeHeadlight1. Net weight of headlight: 100g2. Shell material: plastic3. Applicable voltage range: 36V-48V4. Power: 59mA/2.8W5. Luminous flux: 180-220LM6. Horn Power: 44mA/2.1W7. Horn Volume: 80-100dB8. Product size: 62*50*70mm9. Cable length: about 1.5M10. Light Power: 3WRear Light11. Net weight of taillight: 120g2. Shell material: plastic3. Applicable voltage range: 36-48V4. Power: 1.5W5. Number of light sources: 146. Luminous flux: 15LM7. Product size: 132
- Power: 59mA/2.8W
- Horn Power: 44mA/2.1W
- Horn Volume: 80-100dB
- Luminous flux: 180-220LM
- Applicable voltage range: 36V-48V
| Color | 36V WD007 |
|---|---|
| Brand Name | BaydOg |
| Brightness | 180 lumen |
| Unit Count | 1.0 Count |
| Item Weight | 1 Grams |
| Manufacturer | XiaoNingNing |
| Model Number | 10187068456 |
| Power Source | Battery Powered |
| Material Type | Plastic |
| Mounting Type | Handlebar Mount, Seatpost Mount |
| Number of Pieces | 1 |
| Auto Part Position | Rear |
| Number of settings | 1 |
| Light Output Maximum | 180 Lumens |
| Water Resistance Level | Not Water Resistant |
| Manufacturer Part Number | 10479268469 |
| International Protection Rating | IP07 |
